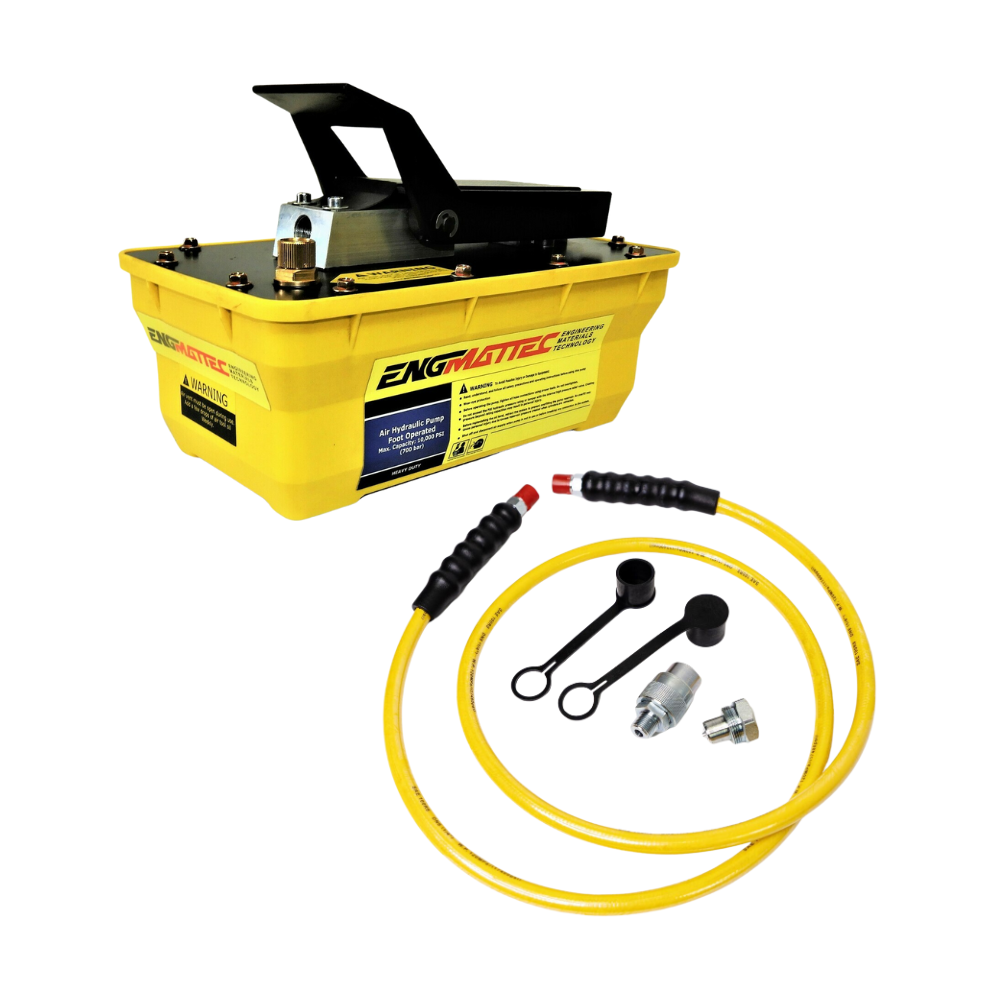

10000 psi air operated hydraulic pump with 17,000 psi Hose & Couplers

Compressed air operated 10,000 psi High pressure hydraulic pump for specialised tooling.
Supplied with a High Visibility Yellow Polyurethane Coated 17,000 PSI Heavy Duty Hose & HP screw together quick connect Couplers.

Supply this pump with 100 PSI of compressed air and it will generate up to 10,000 PSI Hydraulic Oil pressure to actuate or operate any single-acting implement or attachment.

Pump comes complete with a 2-meter-long Ultra High pressure abrasion resistant 17,000 psi Hi Visibility Yellow hydraulic Jacking Hose that exceeds the MHI IJ 100 (10,000) psi Jacking Hose Standard by 7,000 psi,

Most people acquire this popular pump and hose package because it gives them more speed, more control and more safety than the slow manually actuated hand pumps.

Used by Auto Body Repair Shops, Mechanical & Fabrication shops: as well as in the field by mechanics to more quickly torque up, Press, Jack, Push or Pry Apart and by Boilermakers to Punch, Bend, Shear, Cut or Twist materials using specialist High-Pressure Hydraulic cylinders, rams and attachments.

Safe for mining environments:, and or other situations when electricity and possible sparks are prohibited.

Applications include:

• High-pressure supply for scissor lifts for lifting cars and motorcycles.
• Supplying cylinders attachments in collision repair shops and Auto body frame pulling machines and racks.
• Clamping cylinders in fabrication Workshops.
• Pipe and Tube Benders
• Frame straighteners in auto collision centres.
• Spreading attachments in mechanical workshops
• Axle correction in trucks buses and other transport equipment
• Suspension and alignment workshops.

Depending on the size of Jacking Cylinder used and the air pressure supplied you can generate massive lifting or pressing forces.

Need Hollow 20, 30 or 60 ton Jacking / Pulling Cylinders Click Here

Also Suitable for suppling the following tooling

• Torque Multipliers in oil, gas and mining equipment applications.
• Bolt tensioners and nut splitters
• Cable crimpers and terminations for electrical, marine, fencing and safety barriers.
• Bridge and House Jacking.

This ENGMATTEC Pump uses the principle of Intensification to generate 10,000 PSI of oil pressure with only 100 PSI of Compressed air.

If you want to modify your existing press hoses to fit this air operated pump please see the following video. Video Time Stamps

1:02 Unboxing, Pump Hose and Couplings,

2:05 Assembly and Testing

4:25 Filling with hydraulic oil and Priming pump

7:05 Pressure Testing on 50 Ton Capacity press.

8:15 Using the Pump to press on a small bearing

8:56 Fun with a 50-ton press

Widely Used by Auto body shops, Panel Beaters, frame straighteners, Suspension shops, Hydraulic presses, Mechanical Workshops, Car jacks, Scissor Lifts, Rescue equipment, Torque Multipliers, Punches, Shears Expanders and Cutters.

Pull cylinders for structural steel, panel beating, automotive repairs, shipbuilding and cable or tower tensioning

This is a Quality unit Built with an all-metal pump assembly, heavy-duty seals, and a large 2.3 litre oil tank made from impact-resistant ABS plastic.

This unit is also fully rebuildable with parts kit readily available at reasonable prices.

Unique features include.

• Vary the air in pressure in vary oil out pressure (minimum 60 PSI)
• Hand or Foot operation
• The units comes with a two-meter long Ultra high-pressure hose rated to 17,000 psi working pressure complete with a male high-pressure coupler and bend restrictors for longer hose life.
• 3 in one filler breather transport cap.
• Larger than average impact-resistant Hydraulic oil tank with 2.3 litres capacity made from Partially recycled ABS Plastic.
• Compatible and interchangeable with the majority of tooling manufactured for of by a large range of other air hydraulic pump manufacturers such as Fleet-Hydrol, Durapac, Enerpac, Simplex, SPX, Power Team, Porta Power, Porto power, Power ram, for all High pressure Pressing Bending Lifting Pulling Torque Multipliers Tensioning requirements.
• Operation, Simple foot pedal or hand operation
• Unit has a Simple three stage pedal operation, UP, HOLD, RELEASE.
• Push forward pump starts to generate flow and pressure

• Pedal to middle position pumps stops and holds the pressure and or load
• Press Back and pressure is released and load is dropped or removed.
• Provision for mounting to any surface using appropriate length self-tapping screws.
• Unique breather/transport cap.
• Ergonomically designed aluminium foot pedal (can also be hand actuated)
• Powder-coated steel tank cover.
• Enerpac Type Series C couplers supplied with hose

SINGLE ACTING AIR ACTUATED HYDRAULIC PUMP 10,000 PSI (685 BAR)

Invest in this unique intensifying pump with confidence, we are a long established Hydraulic Service Center, your new acquisition will come with a 12 month warranty and an Australian Tax Invoice.

• Single-speed pump, used to operate single acting High Pressure Cylinders and tooling.

We can also supply Compressed Air Filter Regulators Lubricators, please see our online store.

Air pressure regulator with Filter and Lubricator

This product is compatible with a wide-range of tooling and accessories from such brands as Fleet-Hydrol, Durapac, Enerpac, Power Team, and Porta Power
