5 Section Hydraulic Proportional Flow Control Valve & Oil Pilots + Two Dual Axis Joysticks

10142
AU$2 985.85
In stock
1
Product Details
Brand: Walvoil

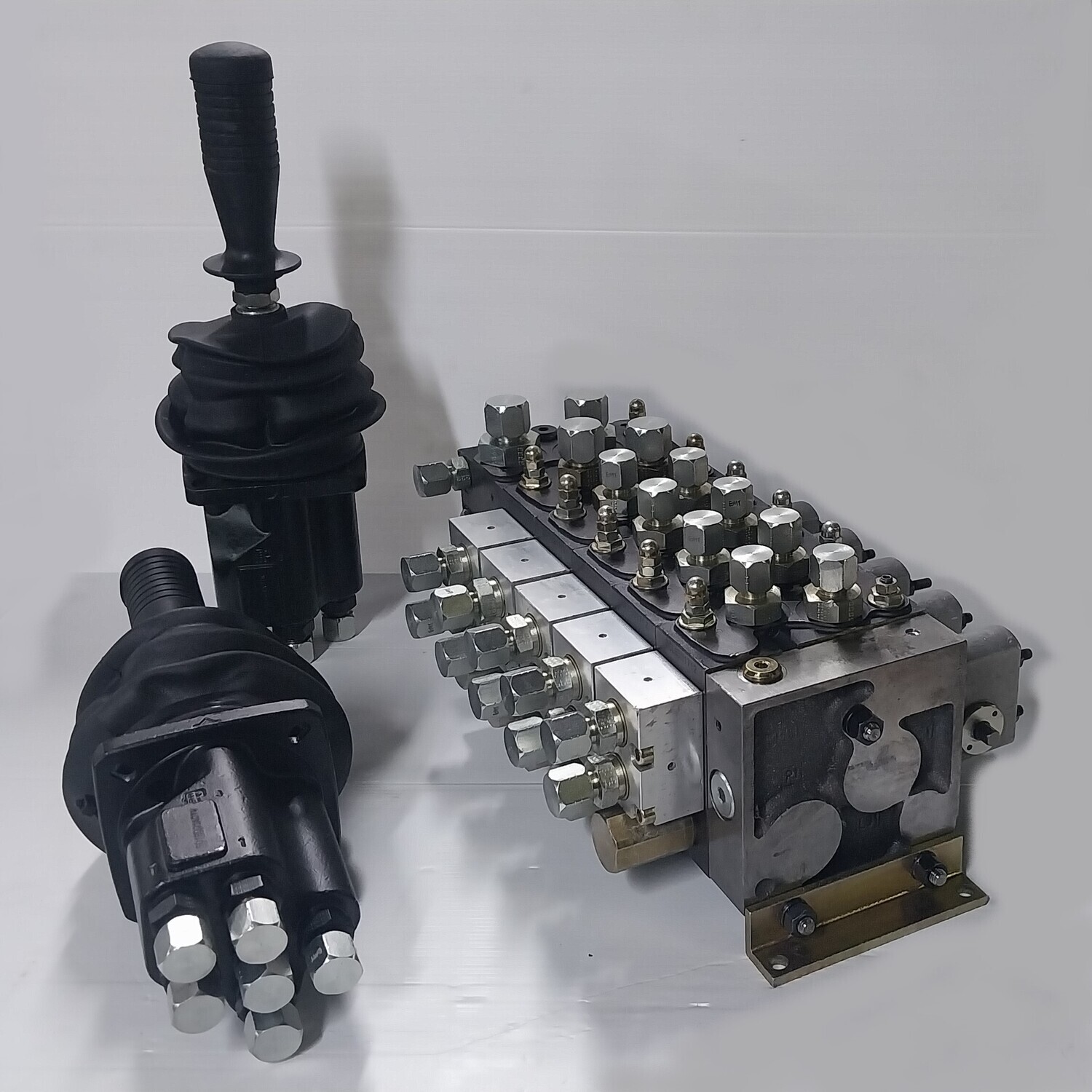

Walvoil DPC 130 Series Pressure Compensated 5 Spool Sectional Hydraulic Flow Control Valve with

Oil Pilot Control and Manual Lever Boxes with Adjustable Stroke Limiters.

Complete with Two (2) Walvoil SV01 Monoblock Dual Axis Joysticks with

4 Work Ports for Simultaneous Operation of 2 Valve Sections.

ONLY ONE SET IS AVAILABLE AT THIS PRICE (Fully Refurbished and Ready for Use).


The DPC 130 has Pressure Compensated Sections and Load Sensing.
It is therefore suitable for use with Load Sensing Variable Displacement Pumps or Fixed Displacement Pumps.


Rated Oil Flow 130 Litres/min at a maximum pressure of 315 bar (4600 psi)

It has 3/4" BSPP Pressure & Tank Ports,

1/2" A & B Ports, &
1/4" BSPP Load Sense and Drain Ports


This Sectional Valve and Twin Joystick Package is in virtually in as new condition and is all high end Quality.

Designed for Agricultural, Earthmoving, Mining, Materials Handling and
Industrial Applications this valve and Joystick Set will provide you with the following Benefits.

  • Machine integration,
  • Efficiency,
  • High Performance,
  • Energy Savings
  • Controllability,
  • Strength and Power with
  • Precise and Smooth Movement Control,
  • Compact hydraulics with
  • Operator comfort
Specifications

Construction = Sectional

Material of construction = Steel and Aluminium

No of spools = 5

O-rings made of NBR (buna-n®)

Max flow rate = 130 litres/min (26 gallons per minute)

Max working pressure = 315 bar (4650 psi)

Spool type = Cylinder Spools. Motor spools are also available at extra cost, please message us.

Spool movement = Oil Pilot Control with Manual lever Override, spring return to centre.

Individual relief valve = Adjustable for every section and every function (factory set at 1800 psi)

Ports sizes

Pressure port 3/4" BSPP

Tank return port 3/4" BSPP

A & B Ports 1/2" BSPP

Load Sense, Drain, Pilot Feed and Gauge ports 1/4" BSPP

Operating temperature range: -20 °c to + 80°c

Dimensions = L x W x H = 40 x 26 x 17 cm

Weight Valve = 30 kg

Joysticks = 4 kg each

Buy with confidence from a long established Australian owned and based company with our 6-month warranty and tax invoice

We can supply all required components for a complete system, for example

Electric or Engine Driven Power Packs,

Pumps and Tanks
Oil filters and Oil Coolers
Hydraulic Motors,
Hydraulic Cylinders Single / Double Acting and Telescopic
Pumps,
DIY Field Fit Hose fittings and
Hydraulic Hose,


If buying more than one item please add to cart any problems or questions please feel free to contact us we will reply asap within normal business hours email us at sales@mhfgc.com.au or phone (07) 5563 1982
