BELL Housing 5-18 HP Honda Engines 3/4 - 1" Shaft for Gear / Log Split Pumps DIN Mount + SAE

BELL ONLY
AU$105.00
In stock
1
Product Details
Brand: Hydraulic.Online
Aluminium Bell Housings for Honda or similar designed (copied) engines.
These bell housings are designed to fit Honda petrol engines as well as copies of the Honda motor.
There are two sizes.
One will fit a 5 hp engine with 3/4" inch output shaft, and a larger size that will fit 7 to 18 HP Honda type engines with a 1" inch Output Shaft.
The pump end of these bell housings is designed to fit the following style hydraulic pumps,
Gear pump Group 1 & 2 DIN mount
4 bolt Hi Lo (2 Stage) log splitter pumps 50 mm square
Two bolt SAE flange with 5/8" Inch diameter straight keyed shafts on pumps.

Please note; the 3/4" Shaft bell housings x 4 bolt Hi Lo log splitter housing, has only a 45mm diameter Hole to allow half couplers through. Length is 105mm for this one

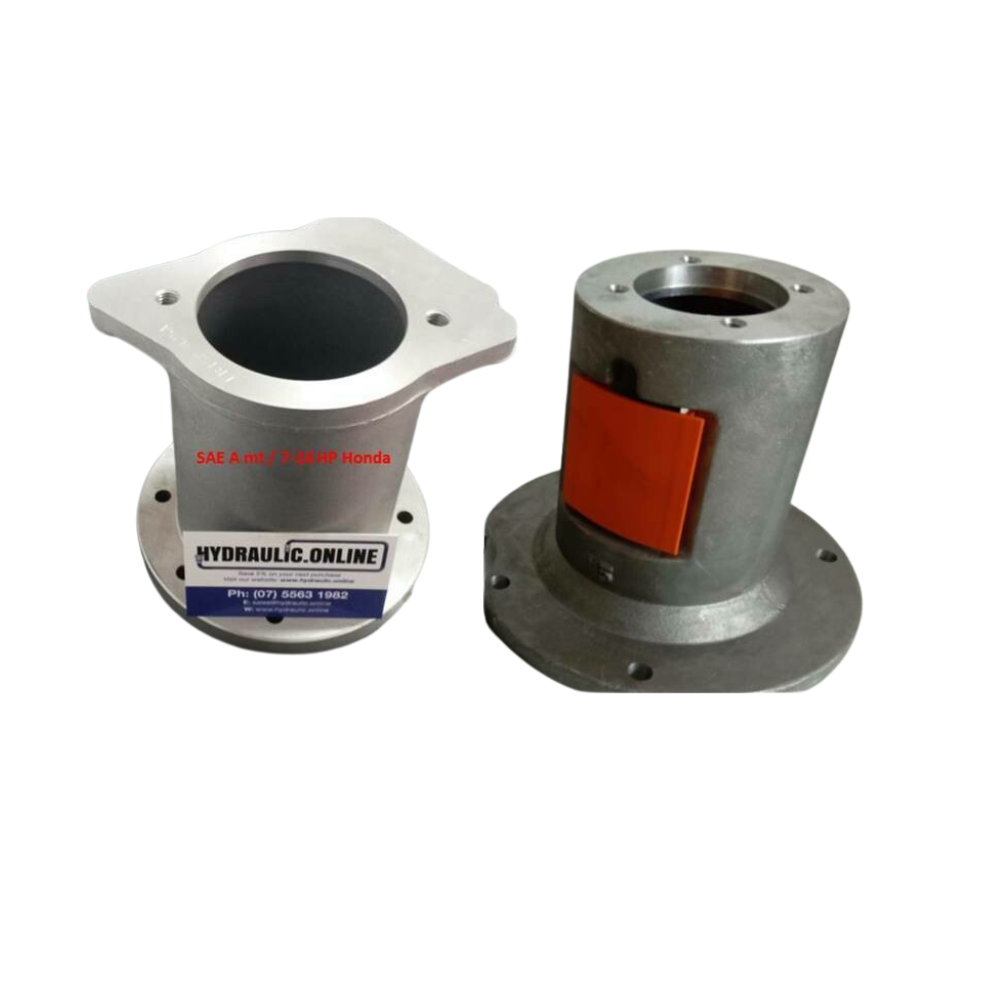

The photos are in order. But please ignore the first Image,
After that, each two Images are of bell housings as listed in order as in the options list.
If you need confirmation, please email us or Call us on 07 5563 1982 & we will send photos/dimensions

'Spiggot' sizes (= diameter of the circular opening of the bell housing shoulder meets engine)

3/4" inch shaft housing = 41.3mm diameter , 1" inch shaft housing = 110mm/146mm diameter

HEIGHT OF the LARGE SIZE Bell Housing is 142mm

Please note: This listing does NOT include half couplers.
Please follow links below to see our other listings for complete bell housings WITH half couplers.

Wood Log Splitter Pump Kit 15 Hp 20 Gpm / 73 Lt/min with Bellhousing and half Couplers

Wood Log Splitter Pump Kit 20 Hp 26 GPM / 100 Lt/min with Bellhousing and half Couplers
