Crimp On Hydraulic Hose Fittings 1 and 2 Piece


Hydraulic Hose fittings for high pressure Applications
Available in preassembled one piece design or a more flexible 2 piece design.
Crimp on or swage on Hose fittings are also known as Hose Tails.

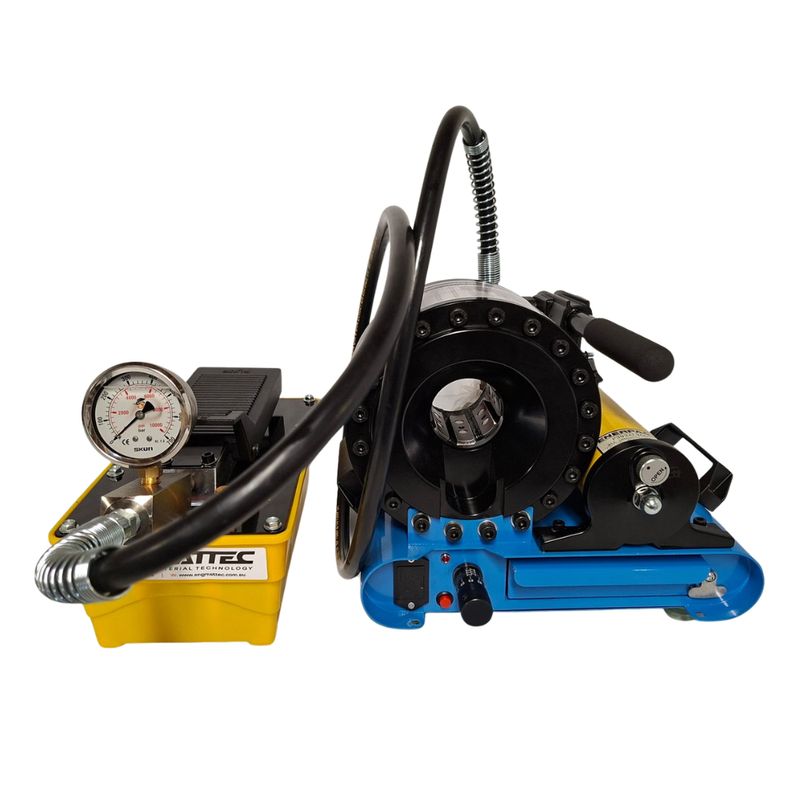

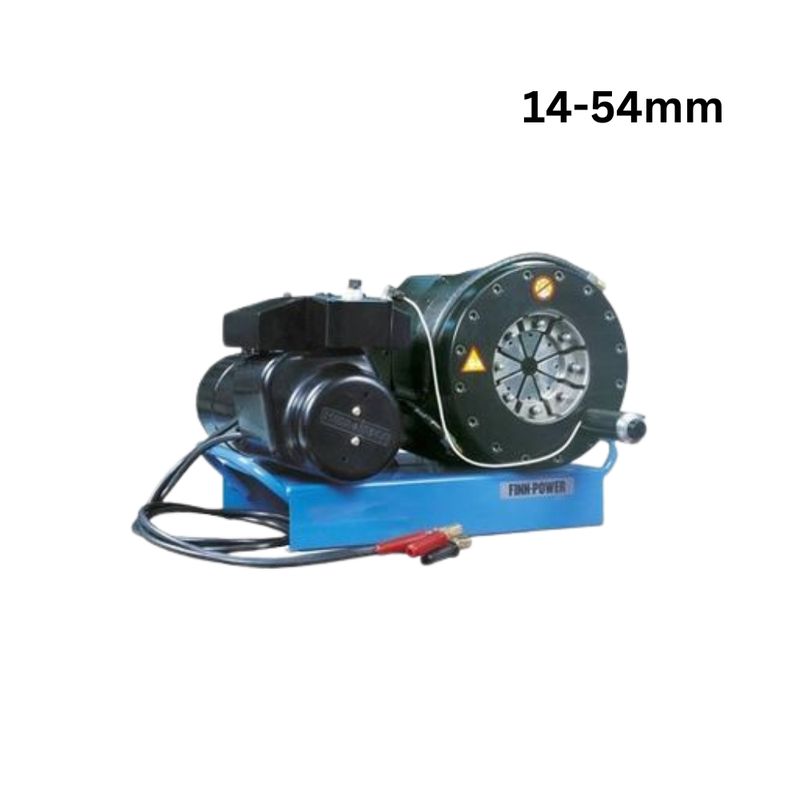

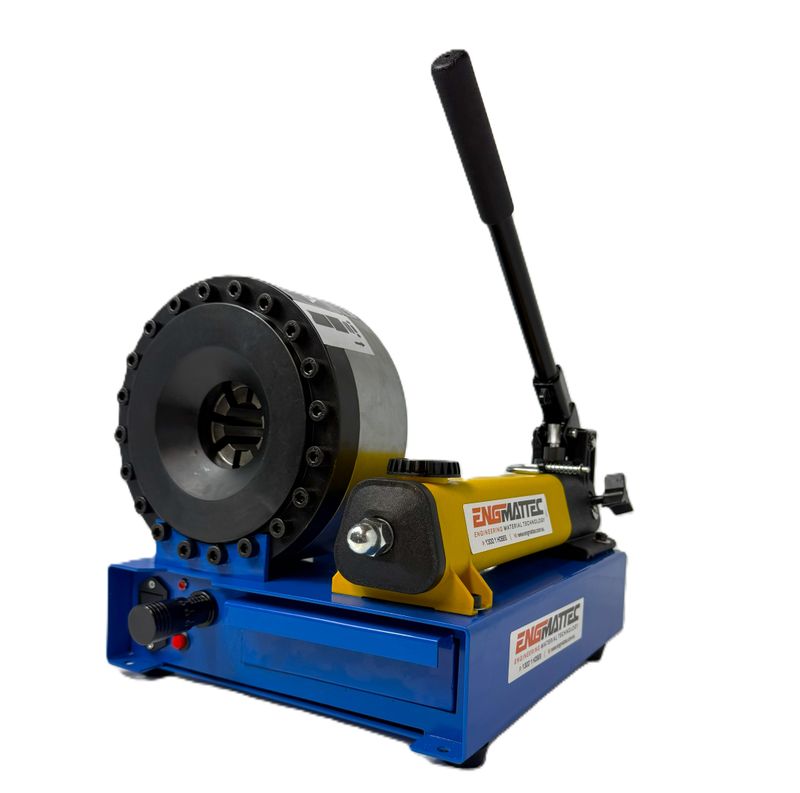

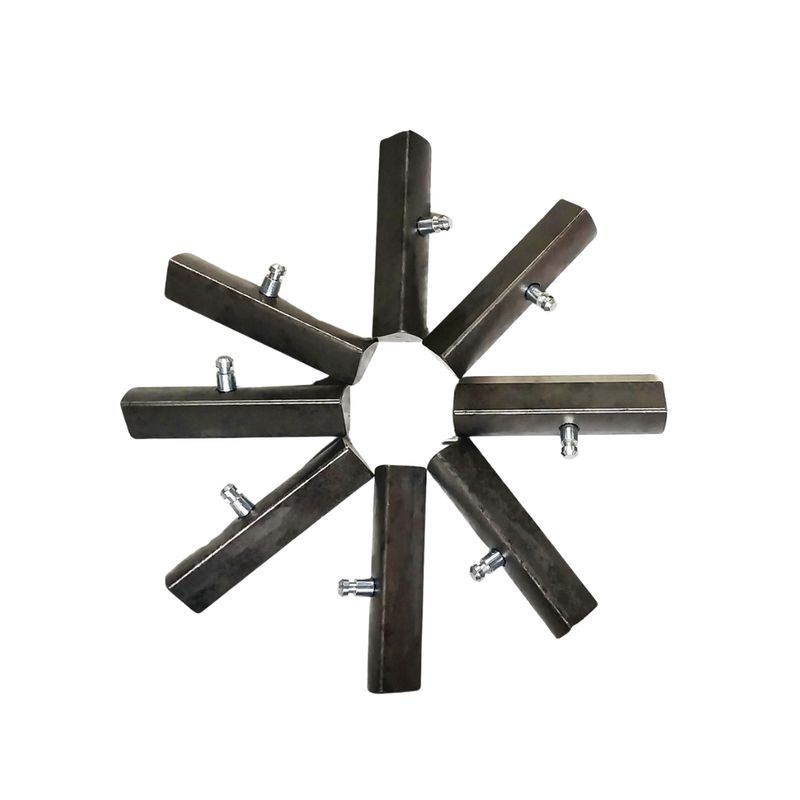

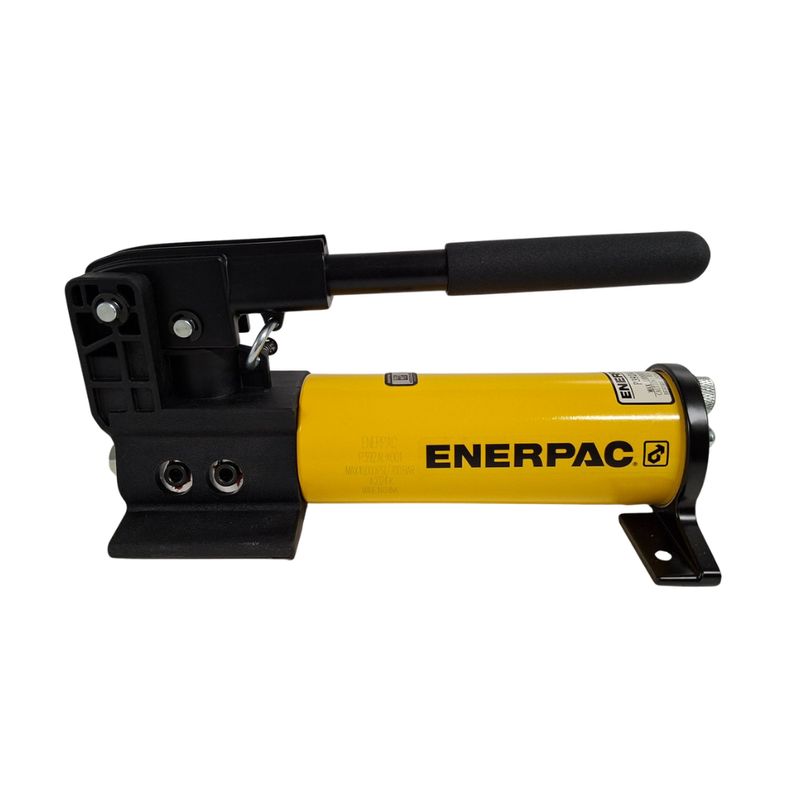

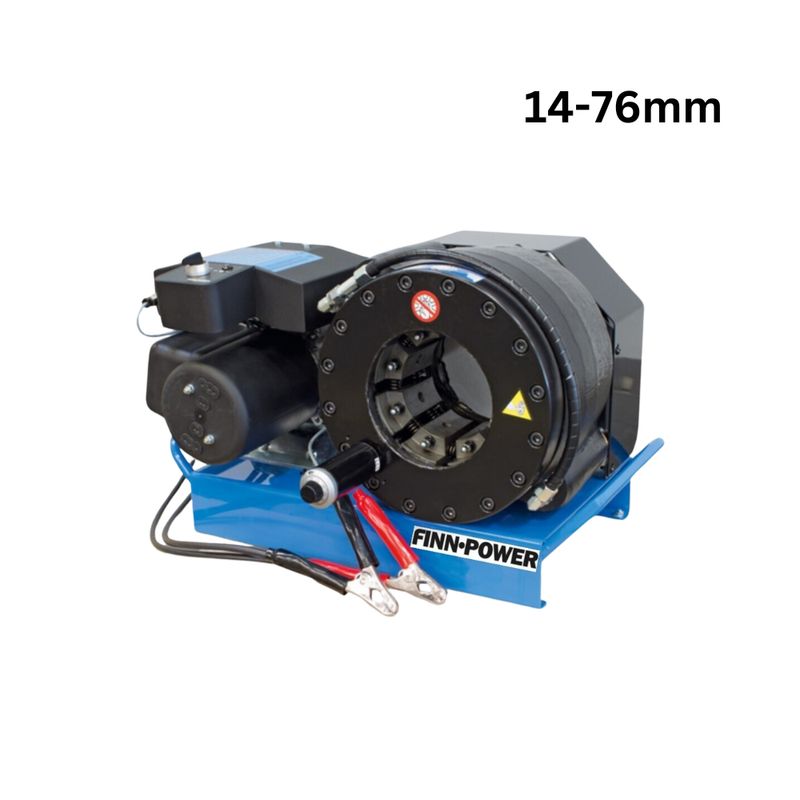

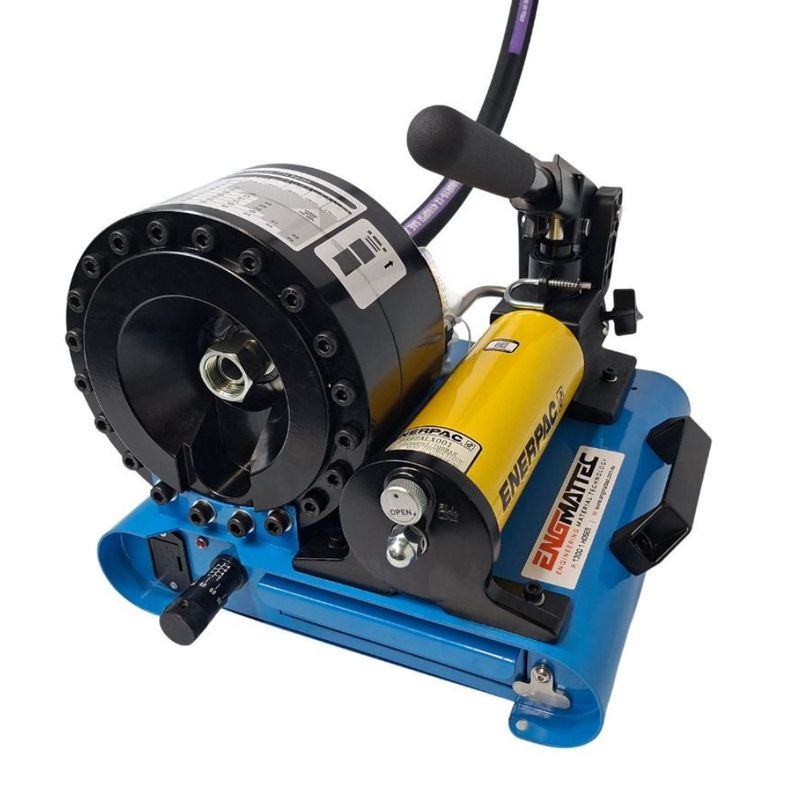

These fittings are designed to be assembled with a high-power hydraulic hose crimper.
The Hose Crimper crushes a steel cylindrical shell or ferrule over the hose
and hose tail to produce a tight leak-free assembly or connection.

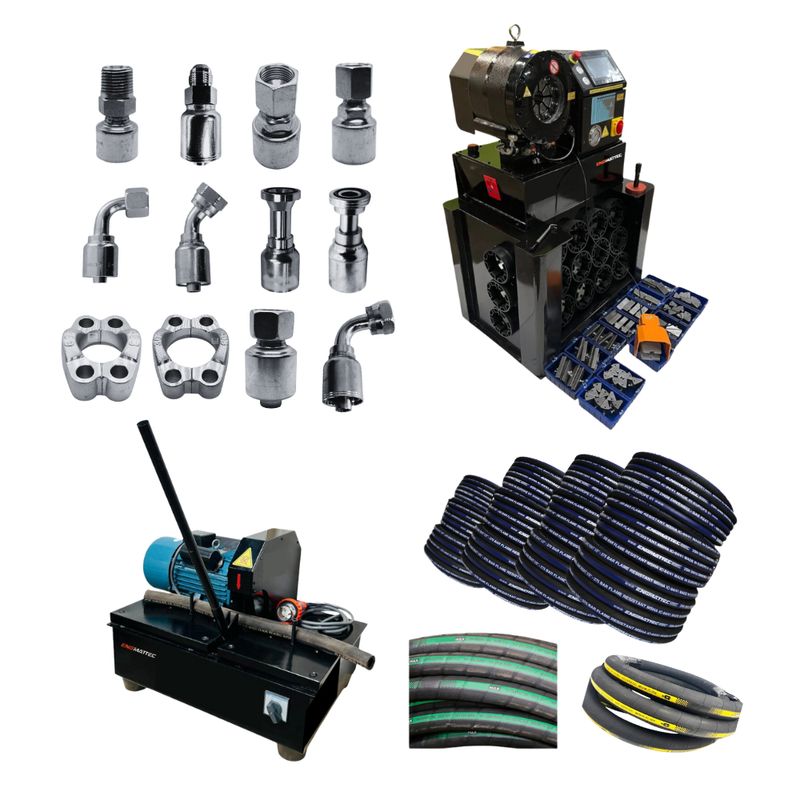

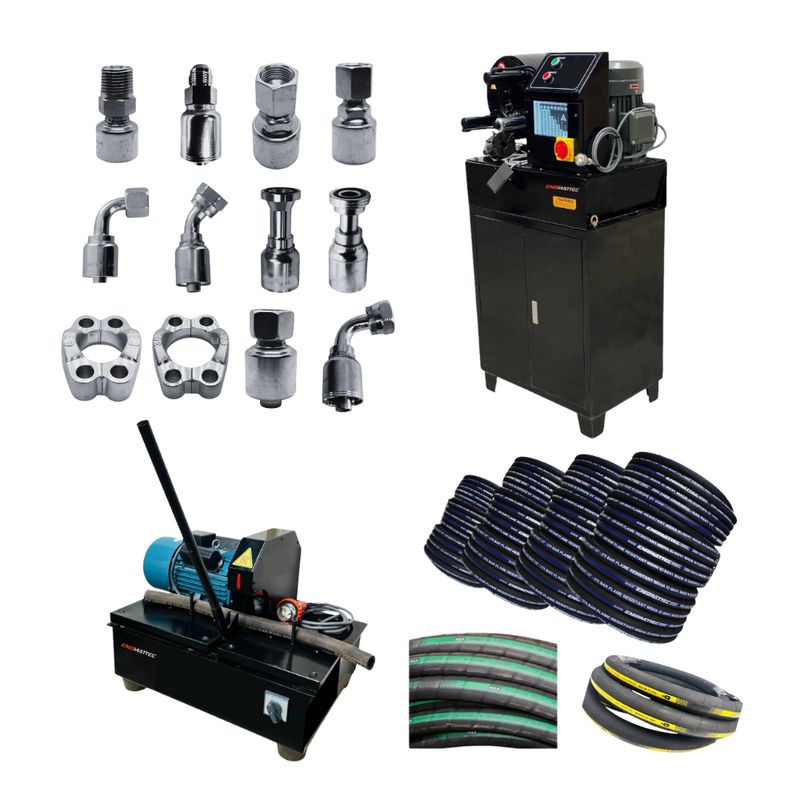

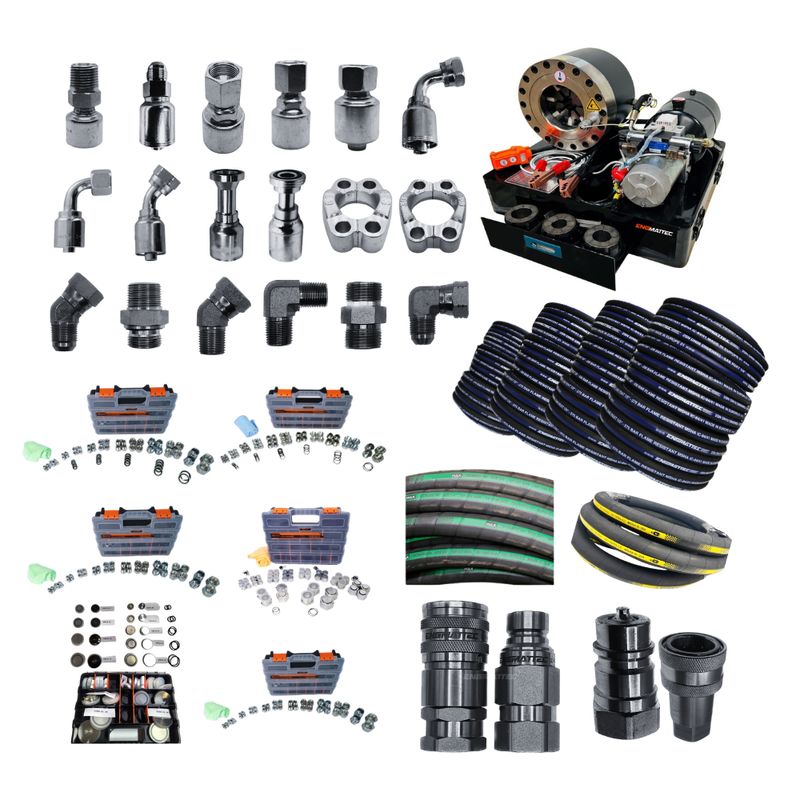

Hose Fittings are available in convenient one-piece or more versatile two-piece designs.

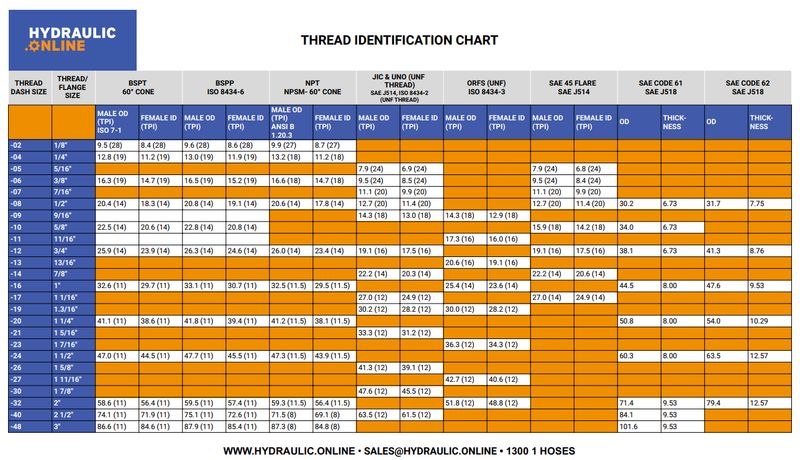

BSPT/BSPP THREAD ID CHART
BSPT / BSPP Size & Pitch DASH SIZE BSPT Male Thread OD BSPP Male Thread OD BSPT Female Thread ID BSPP Female Thread ID
inch – TPI mm inch mm inch mm inch mm inch
1/8 – 28 -02 9,5 0.37 9,6 0.38 8,4 0.33 8,6 0.34
1/4 – 19 -04 12,8 0.50 13,0 0.51 11,2 0.44 11,9 0.47
3/8 – 19 -06 16,3 0.64 16,5 0.65 14,7 0.59 15,2 0.60
1/2 – 14 -08 20,4 0.80 20,8 0.82 18,3 0.72 19,1 0.75
5/8 – 14 -10 22,5 0.89 22,8 0.90 20,6 0.81 20,8 0.82
3/4 – 14 -12 25,9 1.02 26,3 1.04 23,9 0.94 24,6 0.97
1 – 11 -16 32,6 1.28 33,1 1.30 29,7 1.17 30,7 1.21
1.1/4 – 11 -20 41,1 1.62 41,8 1.64 38,6 1.52 39,4 1.55
1.1/2 – 11 -24 47,0 1.85 47,7 1.88 44,5 1.75 45,5 1.79
2 -11 -32 58,6 2.31 59,5 2.34 56,4 2.22 57,4 2.26
2.1/2 – 11 -40 74,1 2.92 75,1 2.95 71,9 2.83 72,6 2.86
3 – 11 -48 86,6 3.41 87,9 3.46 84,6 3.33 85,4 3.36

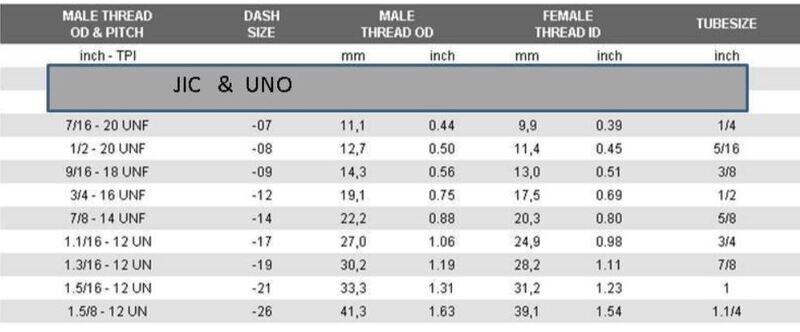

ORFS THREAD ID CHART
Male Thread OD & Pitch DASH SIZE Male Thread OD Female Thread OD TUBE SIZE
inch – TPI mm inch mm inch inch
9/16 – 18 UNF -09 14,3 0.56 12,9 0.51 1/4
11/16 – 16 UN -11 17,3 0.68 16,0 0.63 3/8
13/16 – 16 UN -13 20,6 0.81 19,1 0.75 1/2
1 – 14 UNS -16 25,4 1.00 23,6 0.73 5/8
1.3/16 – 12 UN -19 30,0 1.18 28,2 1.11 3/4
1.7/16 – 12 UN -23 36,3 1.43 34,3 1.35 1
1.11/16 – 12 UN -27 42,7 1.68 40,6 1.60 1.1/4
2 – 12 UN -32 51,8 2.00 48,8 1.92 1.1/2
