HOSE FITTINGS CRIMP ON

Swage (crimp) on high-pressure Hydraulic Hose Fitting (hose tails)

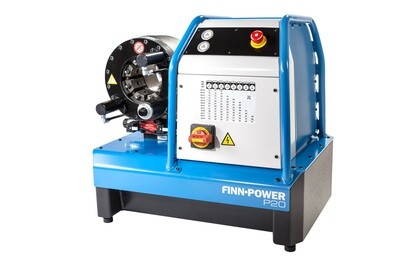

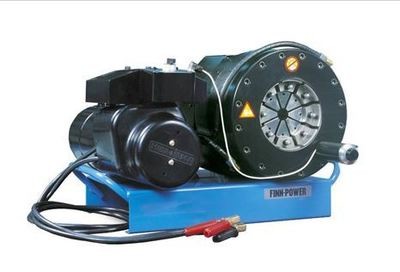

One wire & two wire hydraulic hose (requires hose crimper).

Hose Fittings are available in convenient one-piece design or more versatile two-piece design.

JIC/UNO THREAD ID CHART
Male Thread OD & PitchDASH SIZEMale Thread ODFemale Thread IDTUBE SIZE
inch – TPImminchmminchinch
5/16 – 24 UNF-057,90.316,90.271/8
3/8 – 24 UNF-069,50.388,50.333/16
7/16 – 20 UNF-0711,10.449,90.391/4
1/2 – 20 UNF-0812,70.5011,40.455/16
9/16 – 18 UNF-0914,30.5613,00.513/8
3/4 – 16 UNF-1219,10.7517,50.691/2
7/8 – 14 UNF-1422,20.8820,30.805/8
1.1/16 – 12 UNF-1727,01.0624,90.983/4
1.3/16 – 12 UNF-1930,21.1928,21.117/8
1.5/16 – 12 UNF-2133,31.3131,21.231
1.5/8 – 12 UNF-2641,31.6339,11.541.1/4
1.7/8 – 12 UNF-3047,61.8845,51.791.1/2
2.1/2 – 12 UNF-4063,52.5061,52.422
BSPT/BSPP THREAD ID CHART
BSPT / BSPP Size & PitchDASH SIZEBSPT Male Thread ODBSPP Male Thread ODBSPT Female Thread IDBSPP Female Thread ID
inch – TPImminchmminchmminchmminch
1/8 – 28-029,50.379,60.388,40.338,60.34
1/4 – 19-0412,80.5013,00.5111,20.4411,90.47
3/8 – 19-0616,30.6416,50.6514,70.5915,20.60
1/2 – 14-0820,40.8020,80.8218,30.7219,10.75
5/8 – 14-1022,50.8922,80.9020,60.8120,80.82
3/4 – 14-1225,91.0226,31.0423,90.9424,60.97
1 – 11-1632,61.2833,11.3029,71.1730,71.21
1.1/4 – 11-2041,11.6241,81.6438,61.5239,41.55
1.1/2 – 11-2447,01.8547,71.8844,51.7545,51.79
2 -11-3258,62.3159,52.3456,42.2257,42.26
2.1/2 – 11-4074,12.9275,12.9571,92.8372,62.86
3 – 11-4886,63.4187,93.4684,63.3385,43.36
ORFS THREAD ID CHART
Male Thread OD & PitchDASH SIZEMale Thread ODFemale Thread ODTUBE SIZE
inch – TPImminchmminchinch
9/16 – 18 UNF-0914,30.5612,90.511/4
11/16 – 16 UN-1117,30.6816,00.633/8
13/16 – 16 UN-1320,60.8119,10.751/2
1 – 14 UNS-1625,41.0023,60.735/8
1.3/16 – 12 UN-1930,01.1828,21.113/4
1.7/16 – 12 UN-2336,31.4334,31.351
1.11/16 – 12 UN-2742,71.6840,61.601.1/4
2 – 12 UN-3251,82.0048,81.921.1/2
