M+S MTM Series Disc Valve Hydraulic Motor 200cc to 725cc - 270 Bar Heavy Duty

The M+S MTM Series is a disc valve orbital motor - the highest-torque, highest-pressure class of orbital motor M+S build. Instead of the spool valve used in a Gerotor or Geroler motor, a hardened rotating disc valve is held against its seat by hydraulic pressure. The seat is pressure-balanced and self-compensating, so it keeps sealing as it wears. That is what lets these motors run higher inlet pressures for longer, hold their volumetric efficiency for years and deliver full torque down to a crawl.

The MTM is the reinforced, high-pressure member of the disc valve family: 270 bar inlet, 250 bar continuous pressure drop across most of the range and up to 1830 Nm of continuous torque. It runs a heavier bearing pack and a larger 160 mm spigot flange than the MT, and it is supplied in the HD reinforced build as standard. This is the frame that replaces the Danfoss TMT and the Eaton Char-Lynn 6000 Series.

Where it earns its money: high-pressure winch and hoist drives, drilling and piling rotation heads, heavy mixer and agitator drives, shredders and grinders, track and wheel drives on compact plant - anywhere the pump can make 250 bar and the motor has to live with it all day.

Applications

• High-pressure winch and hoist drives running to 270 bar
• Slew and rotation on heavy material handlers
• Drill heads and augers on piling rigs
• Crusher, screen and shredder drives
• Direct replacements for Char-Lynn 6000 Series and Danfoss TMT drives

Cross-Reference - Compatible Equivalents

Verified against the M+S factory motor index and cross-reference chart. Type any competitor part code into the cross-reference tool on our Hydraulic Motors category page and it will identify your equivalent instantly.

Standard Supply Configuration

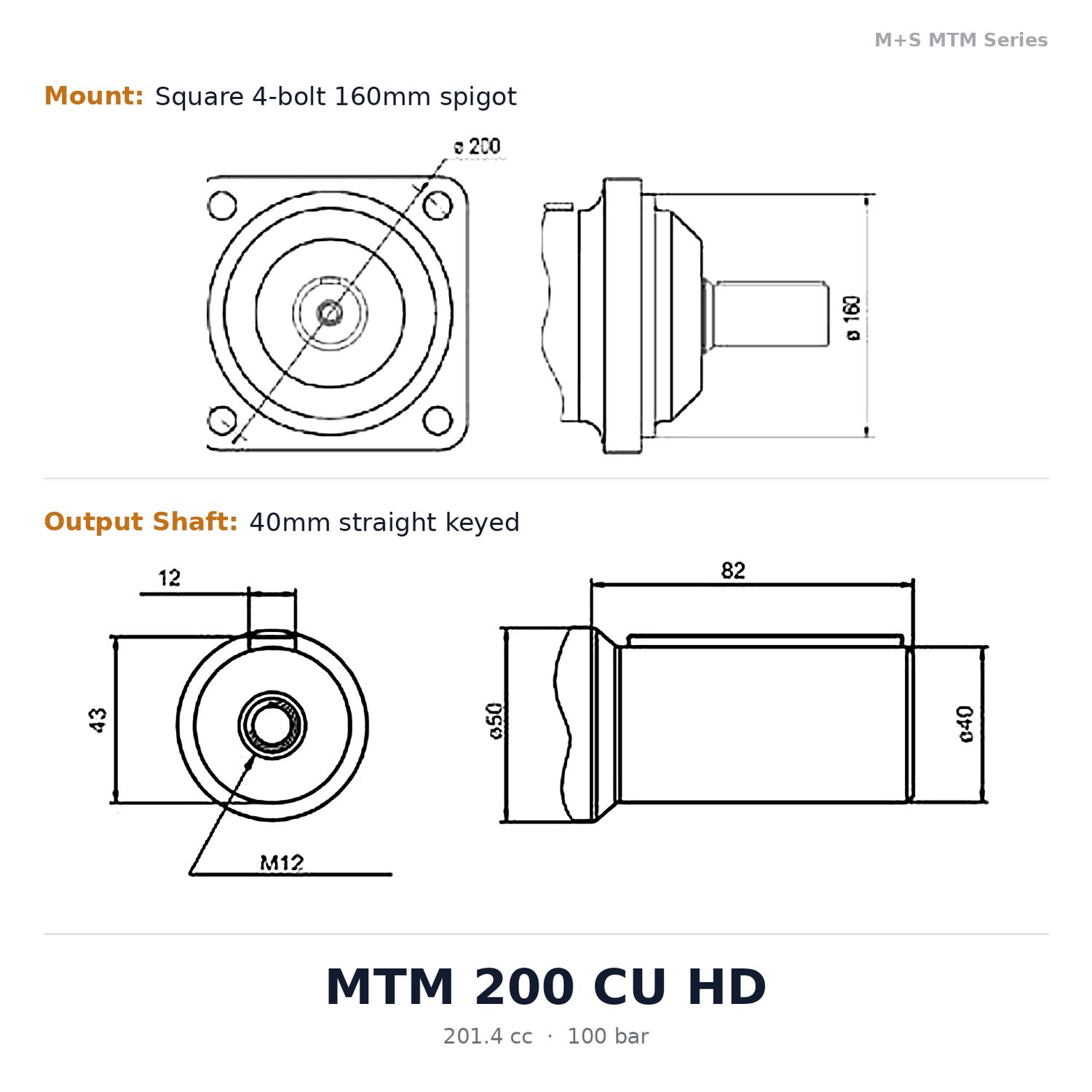

• 4-bolt flange, 160 mm spigot, 200 mm bolt circle (C)
• 40 mm straight keyed output shaft (C)
• 2 x G3/4 BSPP working ports with G1/4 case drain
• High pressure shaft seal (U) - 270 bar inlet rating
• HD reinforced motor build as standard
• Manganese phosphate finish as standard from the factory

How to Order - Part Number Breakdown (Nomenclature)

Read left to right. Example: MTM 400 CU HD

★ = the configuration we hold and sell from the dropdown above. Factory note: the 5 inch version does not accept all shaft options. Codes outside the dropdown are factory builds - use the quote form and we will price them for you.

General Performance Data

Download the M+S MTM Series Factory Datasheet (PDF)

Technician's Advice

When do you need a disc valve motor? When the job is heavy and continuous - conveyor and auger drives, agitators, winches, drum and mixer drives, road-sweeper brushes, feed mixers, forestry heads, drilling rotation. If the motor spends its day near the pressure limit or turning slowly under full load, the disc valve frame is the one that survives. For light intermittent duty a Gerotor or Geroler motor costs less and does the job.

Case drain. Always run the case drain back to tank on its own line, with the lowest practical back pressure and no shared return. A blocked, teed or missing drain line is the number one killer of shaft seals on every orbital motor ever made - and on a high-pressure disc valve unit it will blow a seal in minutes, not months.

Running in. Fill the case with clean fluid before you start it. Run 5 to 10 minutes at moderate load and moderate speed before you go to full pressure. Never crack a motor to full relief on the first turn.

Shaft loads. These frames run tapered roller bearings, so they will take genuine radial load from a sprocket, pulley or chain drive - but check the permitted overhung load and its distance from the flange face in the datasheet before you hang a drive off it. Overhung load is the second most common failure we strip down.

Filtration and fluid. Keep the system at ISO 4406 20/18/15 or cleaner and the fluid between 20 and 60 cSt at running temperature. Disc valve motors are more tolerant than a piston motor, but grit still laps the valve face flat.

270 bar means the whole circuit has to be 270 bar. There is no point fitting an MTM behind a relief valve set at 175 bar, and no point running it on hose rated 210 bar working. Check the relief setting, the hose rating and the return-line size before you order.

Check valves. The factory can build this motor with internal anti-cavitation check valves (code 1). If your load can drive the motor - a winch paying out, an over-centre auger - ask us about it on the quote form rather than plumbing a workaround.

MTM or MT? Same displacement range. Take the MTM when the pressure is above 210 bar or the duty is brutal; take the MT when 210 bar and 1300 Nm is enough and you want to spend less.

Seal kits: MTM-SKU - see the seal kit listing below.
