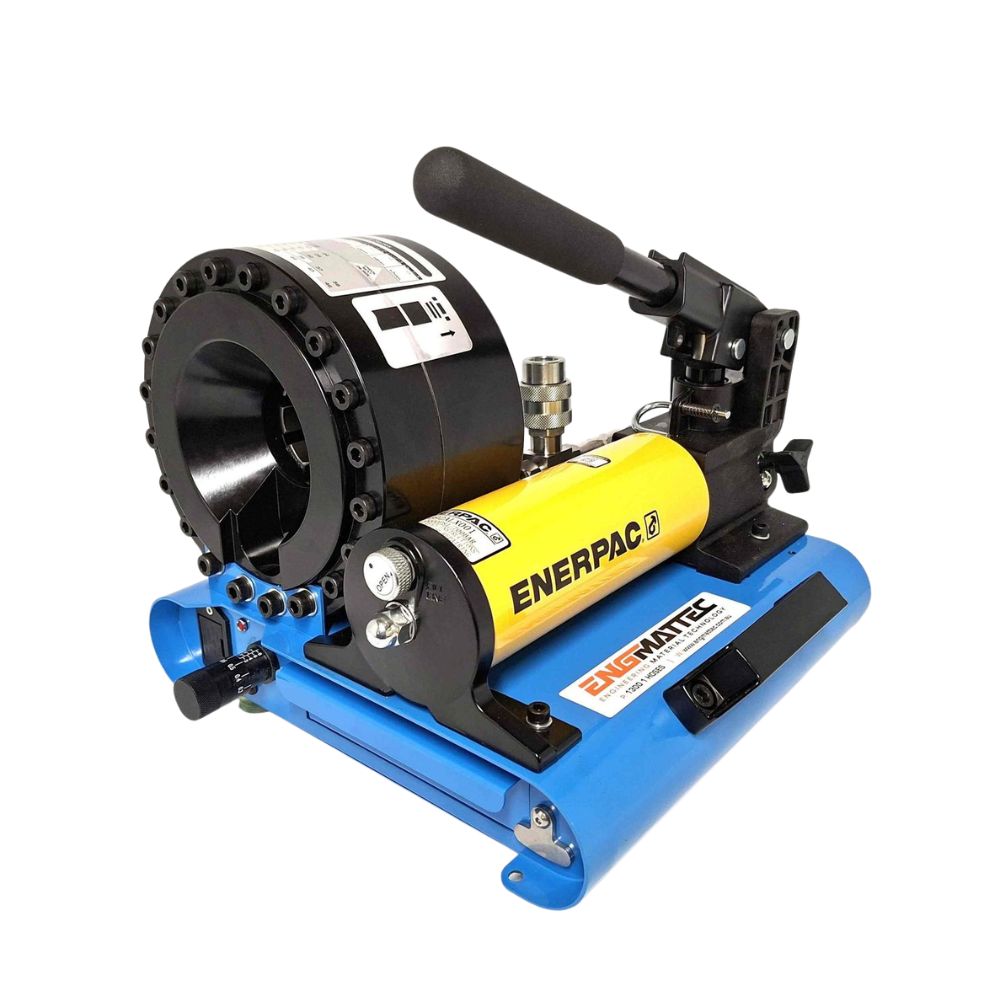

Portable Hydraulic Hose Crimper 10 to 38 mm with Enerpac and Air Operated 10,000 psi pump

HAND CRIMPER With Hand Pump
AU$3 249.00
In stock
1
Product Details
Brand: enerpac samway vevor

Portable Hand Operated Hydraulic Hose Crimper, with Enerpac and Air Operated 10,000 psi pump.

Comes with 8 Die sets to be able to Crimp Diameters from 10 to 38 mm.

This Portable Hydraulic Hose Crimper come with 8 sets of Dies and an "Enerpac" P392 two stage High Speed
10,000 psi hand-operated Pump as well as an optional compressed air-operated 10,000 psi
foot or hand-actuated pump.

If you are looking for a more output with less of your own human powered energy try our Crimper and Air operated Pump Combo.
clink the link Below.
Hand Crimper plus faster Air Operated Hydraulic Pump and Hose Assembly.

Compared to a single-speed type hand pump the Enerpac P392: Hand actuated pump is a 2 speed pump and can reduce the number of hand strokes to complete a full crimp by as much as 75%.
The 2 speed design will deliver high flow and low pressure such as when closing the crimper dies until the dies start to contact the hose fitting to be crimped and the pressure and load start to increase.
When this point is reached, the pump will automatically switch to the low flow high-pressure stage.


This great combo makes this crimper more user-friendly,
faster and less taxing on the body especially if you are making multiple hose assemblies.


Simply screw on the High-pressure quick connector hose to the coupler supplied on this model crimper,
plug air into the foot pedal, & you will have both hands free to hold and guide the hose-crimping process.

Important When using the foot pedal, you must CLOSE the hand pump release valve,
otherwise fluid will run in & out of the hand pump.

Simply use the foot pedals release function.


Shipping for this unit is ex-Gold Coast. Please allow approx. 2 days dispatch time.
Also Included is a Plastic Storage case for your die sets.
It is highly recommended to NOT store the die sets in the draw if moving the machine

because when carrying the unit to the site, you could lose a die making that size useless.


Packed weight (for shipping): 53kg Dry weight: 30kg + pedal 7kgs

Simple to use with the following Great features
  • Capable of Crimping hoses from 1/8 inch up to 3/4 inch 2 wire.
  • Can generate up to 95 tons of Crimping Pressure.
  • Easy to change out and replace dies for other sizes.
  • Removable Crimp Head for even tighter access jobs.
  • Micrometer style "Crimp Diameter" setting dial with Red LED indicator light.
  • Repeatable and reliable crimp diameters (Accuracy 0.05mm)
  • Dimension 400 long x 330 wide x 280 mm high, Weight = 30 KG
Ideal for both your workshop, service truck, or hard-to-reach site and machine locations.

Specifically designed for field service work when repairs and or final installs must be made on-site.

Earthmoving, Automotive, and Marine, the applications for this unit are endless.If you have you ever had to Cut out a damaged section in a long hose that winds and snakes its way through a machine or ship's engine room then this is the machine you are going to need?

Capable of doing multiple crimps with little effort.

This portable crimping machine is an excellent addition to your maintenance and repair services.

Simple and straightforward in construction, easy to operate and maintain, and highly reliable.


Below Video Is The Latest Portable Crimper now supplied with a
High Speed ENERPAC 10,000 psi Hand Operated pump.


The light weight of these service machines allows the portable unit to be carried to any location. (30kgs)


The machine comes standard with 8 sets of dies.
These dies will give you the range to crimp from 14mm up to 38mm,
which covers from 1/8 100R7 Hose up to 1" inch 100R2 two-wire hose.
Crimping Dies supplied, 10,12,14,16,19,23,27, and 31mm.

We have been using these exact crimpers out on site for those hard-to-get-to-hoses
on the industrial plants, marine applications,
tight and confined space access as well as crushing plants,
and automotive and mobile plants.


The crimp head can be removed from the base and with a flexible hose
can be positioned into the tightest of spaces for hose re-ends,
for example, earlier this year we had just the crimp head balanced on top
of the differential of a JCB backhoe in order to re-end a pilot line.


Freight. This comes in a timber padded box for transport ex Sydney.
We will require a postcode for the freight quote.
Please send us a message for more information.

Email: email us at sales@mhfgc.com.au

Or us Phone: 07 5563 1982
Hours: 8 am to 4 pm Monday - Friday, excluding public holidays

If you have any questions please don’t hesitate to contact us
Best regards,
Hydraulic.Online


Improper Selection
, Installation, Implementation, And / Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
